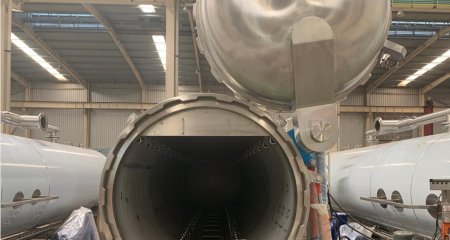

Water Cascade Retort

Product Details

Water cascade retort is often referred to as water shower, or raining retorts because the process water showers over the containers in retort basket.

Operational principle – Process water is drawn from the bottom of the retort, circulated through an external heat exchanger where the water is indirectly heated, and redistributed at the top of the retort. The process water flows across a perforated water distribution plate spanning the top of the retort, and cascades into the product baskets. The distribution plate is typically the combined length of all the baskets representing a full load. The number and size of the holes in the top distribution plate is critical to ensuring the process water flows evenly across the entire load. And in most systems, the 4 vertical sides of the retort baskets are solid, which helps channel the process water through the basket. Water level is maintained below the bottom of the retort baskets, and the perforated basket bottoms should be of the design that they do no restrict the flow of the water out through the load.


Equipment features

  • Safety interlock

    An intrinsically safe door locking mechanism with electrical switches interlocked with the internal vessel pressure.

  • direct steam retort -features 1

    Siemens S7 programmble logical controller (PLC) with panel view in English with Automatic Alternative Process Control Honeywell Circular Chart Recorder Optional

  • water cascade retorts features 1

    Hydraulic slide-up doors with interlocking system for safety once vessel has pressure inside (optional). Or Manual Swing Open Door.

Packages Type of Applications

  • Rigid-Containers

    Rigid-Containers

  • glass jars, bottles

    glass jars, bottles

Specifications

Model
Diameter (mm)
Vessel Length (mm)
Basket Qty. (pcs)Volume (m³)
Basket Dimensions (mm)
CR100210001800
21.65
850×630×630
CR10031000240032.12
750×630×630
CR1203120030003
3.78
950×780×760
CR12041200360044.45
850×780×760
CR140414004000
46.77
940×900×860
CR140514005000
58.31
940×900×860
CR140614006000
69.85
940×900×860

Constant improvement and engineering innovations mean these specifications may change without notice.
