Steam Air Retort

Product Details

InnovaSter Steam & Air Retorts

1. Thanks to its fan system, the steam-air retort doesn't need to drive air by steam any more as the fan rotation can break the cold air and force steam to travel parallelly with trays. Thus steam can circulate horizontally and evenly in retort to guarantee faster heat penetration and more uniform sterilization effect.

2. As there is no preheating during sterilization process, thus it saves the start the time and greatly reduces the cycle time of sterilization.

3. As no need of process water for heating and sterilization and no need of steam to heat the process water, so it can greatly save steam and water.

4. The fan in retort forces the steam traveling from one end of the tank to the other end, so it can perfectly reach all the products and always keep the steam evenly circulate in retort to ensure good sterilization effect without cold point.

5. The steam & air retort is more flexible and accurate in pressure and temperature control, and it can adopt counter pressure for cooling; so its application is broader and is applicable to flexible packaging, bottles, cans , high temperature resistant plastic as well alumnium packaging.




Equipment features

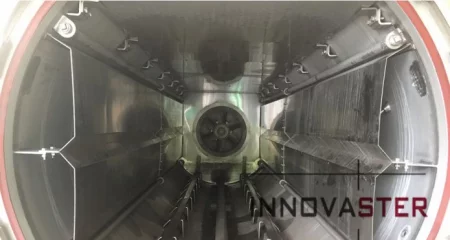

  • Steam Air Retort Fan Motor

    Fan system can break the cold air and force steam to travel parallelly with trays.

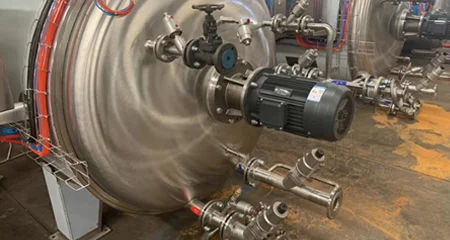

  • steam air retort

    It can greatly save steam and water. Ensure good sterilization effect without cold point.

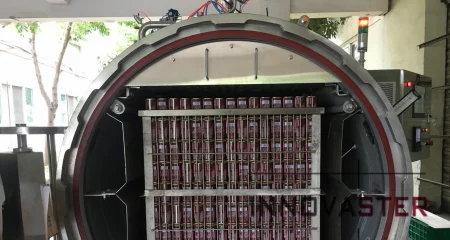

  • steam & air retorts

    More flexible and accurate in pressure and temperature control.

Packages Type of Applications

  • ●Rigid Container

    ●Rigid Container

  • ●Flexible packaging

    ●Flexible packaging

  • Maximum container flexibility

    Maximum container flexibility

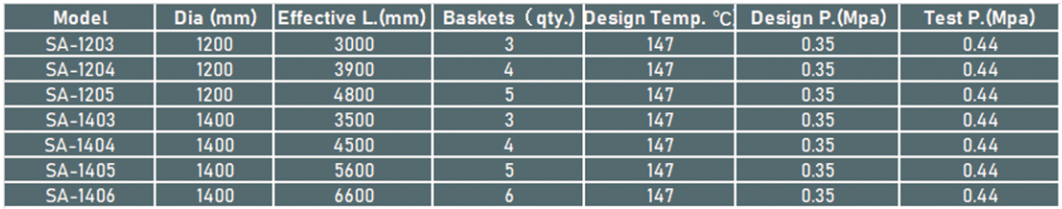

Specifications


Constant improvement and engineering innovations mean these specifications may change without notice.
